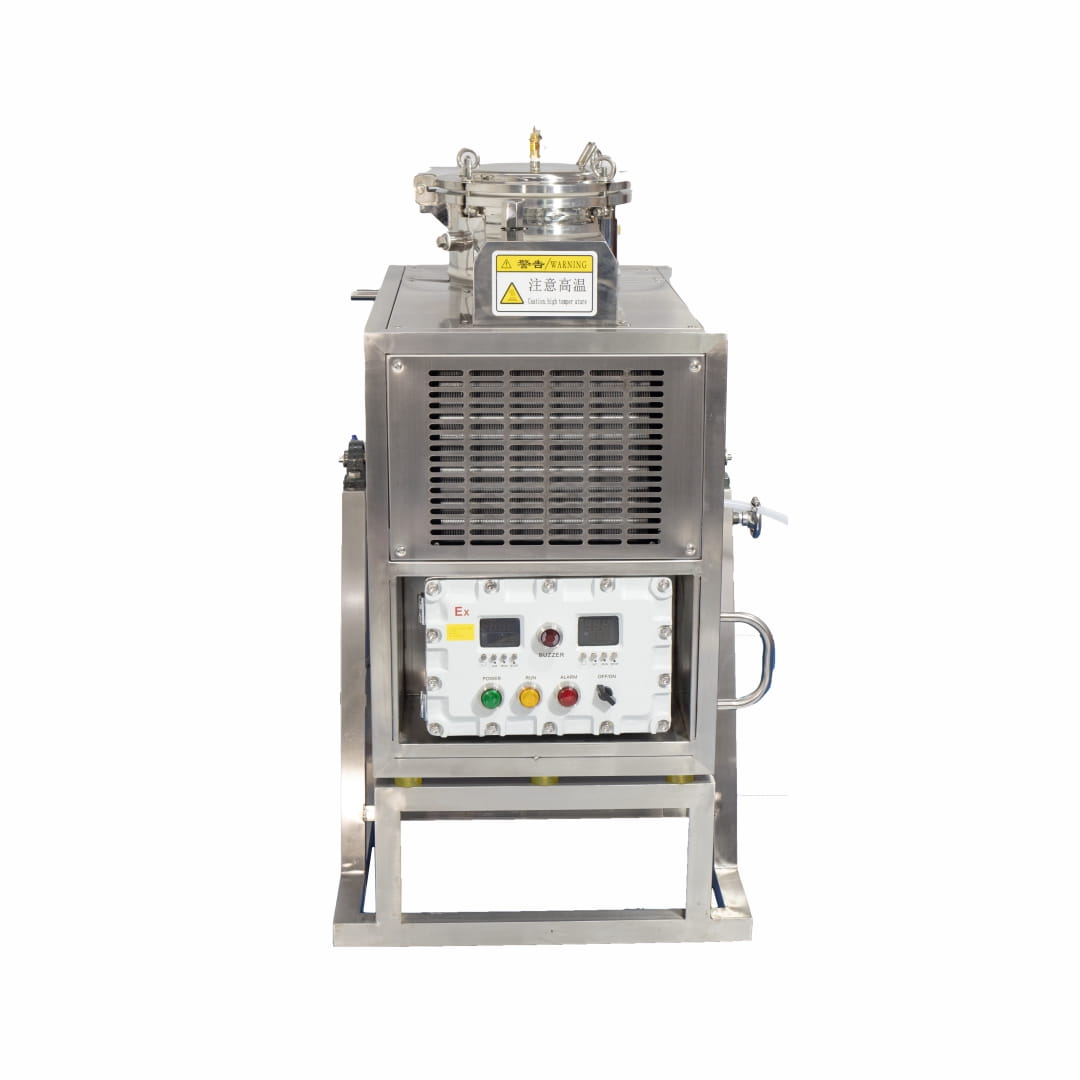

IPA Recycling Machine

IPA Recycling Machine

IPA Recycling Machine, Electric control cabinet: explosion-proof sealed type to prevent spark and solvent contact. (Exd II BT6)- 32-section PID temperature and time setting. External Color display CNC device. This product can prevent foaming, with stable recovery flow and high efficiency; and solvents can be recovered according to their composition.- It has the function of timed shutdown, and the solvent content can be reserved to effectively prevent the occurrence of gas explosion of powdered aluminum.- It has the function of ultra-high temperature protection. When the set heating temperature is exceeded, it can automatically shut down the heating system, and the condensing system works continuously to reduce the temperature.


Category:

Technical Specification:-

Model

Parameters

Feed capacity (L) Power supply (ACV) Power (kW) Temperature range () Treatment time (Min.) Recovery (%) Machine size (mm) Machine Weight (Kg)

J20Ex

20 380 3 5~200 120 95 800x750x1100 100

J40Ex

40 380 4 5~200 150 95 1100x800x1200 140

J60Ex

60 380 5 5~200 180 95 1100x800x1300 160

J80Ex

80 380 6 5~200 210 95 1200x900x1400

200

J100Ex 100 380 8 5~200 240 95 1200x900x1400

210

J125Ex 125 380 8 5~200 240 95 1200x900x1600

220

J250Ex 250 380 16 5~200 270 95 1200x1800x1950

500

J450Ex 450 380 32 5~200 270 95 1680x1400x2950 700
